Bitumen Sprayer

Mewad Equipments manufactured Bitumen Sprayer is offered in the form of a truck mounted, self-propelled along with the appropriate heating system and variable spray bar. This offered Bitumen Sprayer are designed with the latest technology standards and site requirements to operate on a consistent pressure system, complete with air-compressor, bitumen pump, auxiliary engine, tank mounting and other accessories.

Bitumen Sprayer offered by us make sure the accurate binder dosage for the best quality surface treatment and with constant rate applications of hot bitumen or cold tar. The technology we use to make Bitumen Sprayer ensures high efficiency and application on large areas with superior quality. This allows the laid asphalt to stick to the surface. It is one of the important construction equipment for road construction. It is tried and tested equipment for rough Indian conditions.

Bitumen Sprayer
Mewad Bitumen Sprayer Specifications
  • Capacity 4000, 6000, 8000, 10000 liter
  • Kirloskar-HA-294 makes engine 25 Hp.
  • Fully fordable spray bar 2.5 mtr -4.2 mtr. The spray bar consists of 19 No brass spray nozzles & each nozzle has a spraying capacity of 6 ltr/minute. High quality hose pipes ensure that you have tension free spraying. The spray bar can be moved right-left & even up-down.
  • Heavy duty Bitumen gear pump.
  • The unit is fitted with an Air compressor. Compressed air is stored in tank for supply to pneumatic cylinder, main burner, Hand burner & cleaning system.
  • Mewad Road Equipment is a leading Manufacturer,supplier,exporter of Bitumen Sprayer, Emulsion Sprayer, Skid Mounted Bitumen Sprayer, Emulsion Sprayer India.
  • Low air pressure burner for heating of bitumen &hand burner for heating of pipe line.
  • Heavy duty bitumen gear pump.
  • Bitumen sprayer is suitable to be mounted on standard truck chases with clear deck area of 4700 mm, which is at customer’s scope

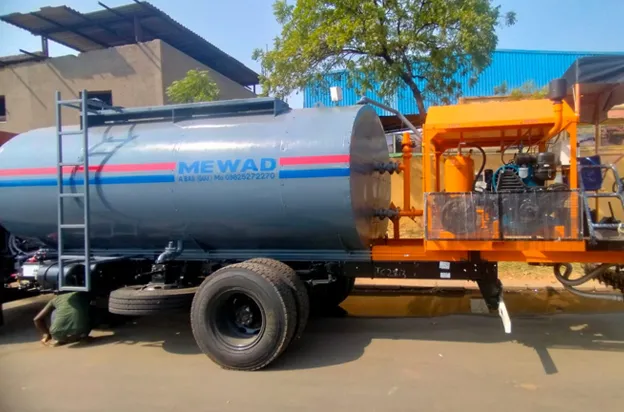

Bitumen Sprayer manufacturer
